Name: F0415L-06V
Brand: Transmotec
SKU: 20041502
Price: 239.00 sek
Availability: InStock

Home / Solenoider / Öppen / F0415L-06V

F0415L-06V

≥ 1 pcs

239 kr

≥ 5 pcs

182 kr

≥ 25 pcs

149 kr

≥ 50 pcs

83 kr

≥ 100 pcs

Finns i lager

Specification Customization Drawing Data sheet and downloads

Specification

Spänning

Effekt

0,8W

Profil

Square

Length

15mm

Profilhöjd

10mm

Profilbredd

8mm

Weight

Max. kraft

0,09N

SKU

20041502

Customization

Some of the possible customizations:

Plunger length

Plunger profile

Connectors

For any inquiries regarding customizations, please contact us at:

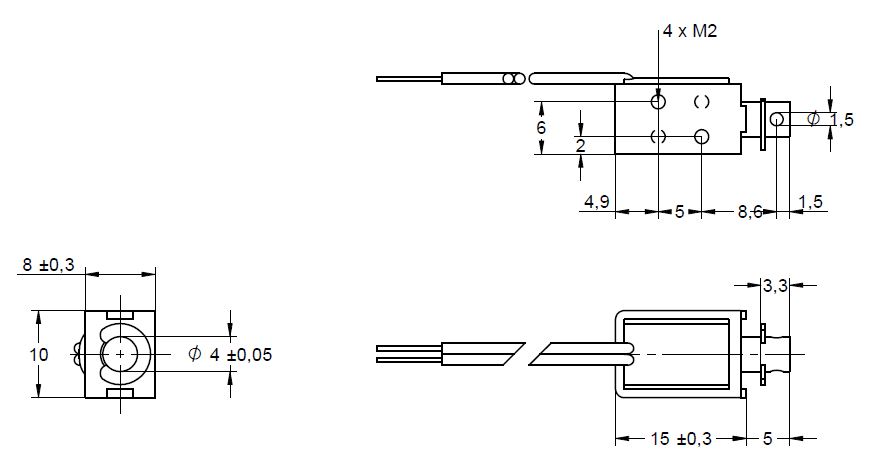

Drawing

Data sheet and downloads

Datablad

Ritning

Katalog

3D CAD (.stp)
