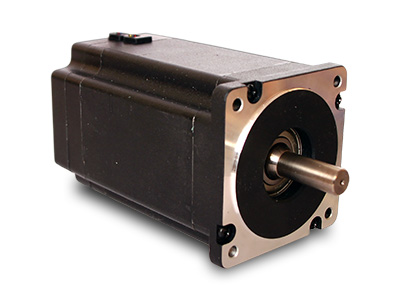

B86139-48
B86139-48
≥ 1 pcs
7 204 kr
≥ 2 pcs
6 440 kr
≥ 5 pcs
4 565 kr
≥ 10 pcs
3 148 kr
≥ 25 pcs

Finns i lager

Spänning
48V
Diameter
0mm
Nominellt varvtal
3000rpm
Nominellt vridmoment
2,1Nm
Effekt
657W
Längd
139mm
Ström vid maxlast
16,5A
Profilhöjd
86mm
Profilbredd
86mm
Vikt
5kg
SKU
13042058
Some of the possible customizations:
Shaft length
Shaft profile (D-shaft or circular)
Gearbox
Connectors
Encoder
For any inquiries regarding customizations, please contact us at:
Datablad

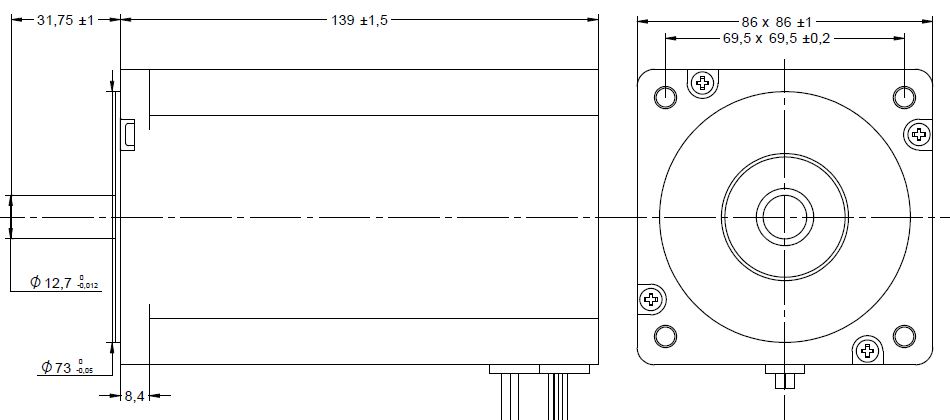

Ritning
Katalog
3D CAD (.stp)
