DLA-12-10-A-25-IP65
DLA-12-10-A-25-IP65
≥ 1 pcs
1 935 kr
≥ 5 pcs
1 636 kr
≥ 25 pcs
1 418 kr
≥ 50 pcs
947 kr
≥ 100 pcs

Finns i lager

Spänning
12V
Maximal kraft
300N
Feedback
No
Hastighet vid maxlast
25mm/s
Slaglängd
25mm
Ström vid maxlast
3A
Weight
1,5kg
SKU
16212010
Some of the possible customizations:
Stroke length (min. 25.4mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Noise level (min. = 55dB)
Dimension tolerances
Vertical or horizontal mounting holes
Front connector material/type/dimensions
Motor pinion material
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Datablad

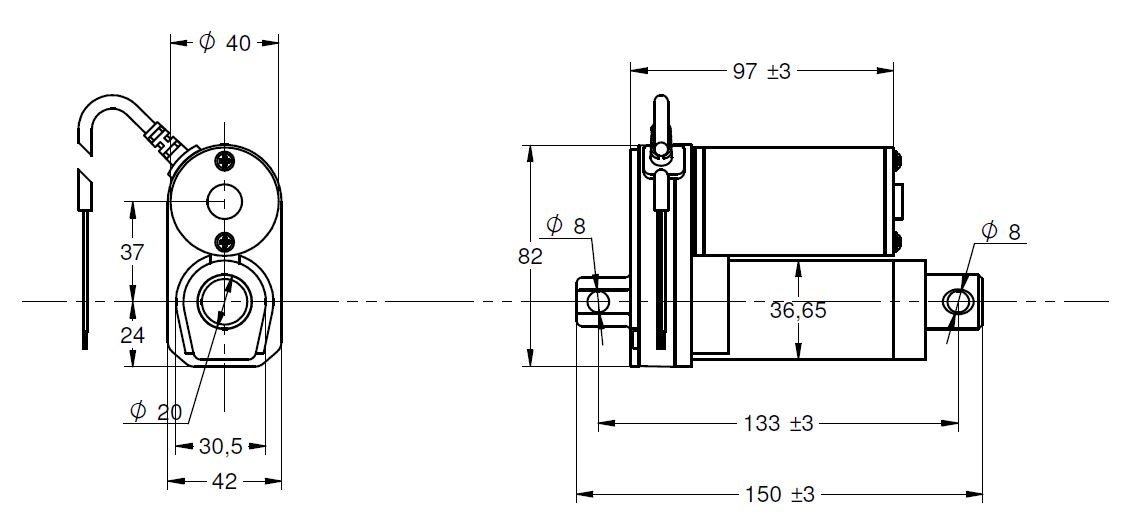

Ritning
Katalog
3D CAD (.stp)
