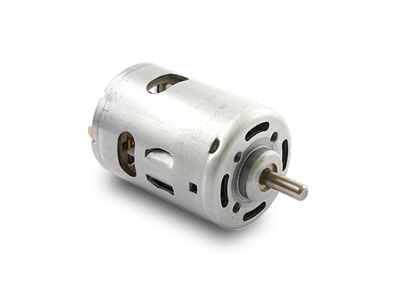

775-5520F-CC
775-5520F-CC
≥ 1 pcs
537 kr
≥ 5 pcs
457 kr
≥ 25 pcs
404 kr
≥ 50 pcs
267 kr
≥ 100 pcs

Finns i lager

Spänning
24V
Diameter
45mm
Effekt
182W
Length
94,3mm
Nominellt varvtal
18400rpm
Nominellt vridmoment
94,3mNm
Weight
481g
Ström vid maxlast
68,1A
SKU
15775002
Some of the possible customizations:
Shaft length
Shaft profile
Operating temperature -40° -- +80°
Encoder
For any inquiries regarding customizations, please contact us at:
Datablad

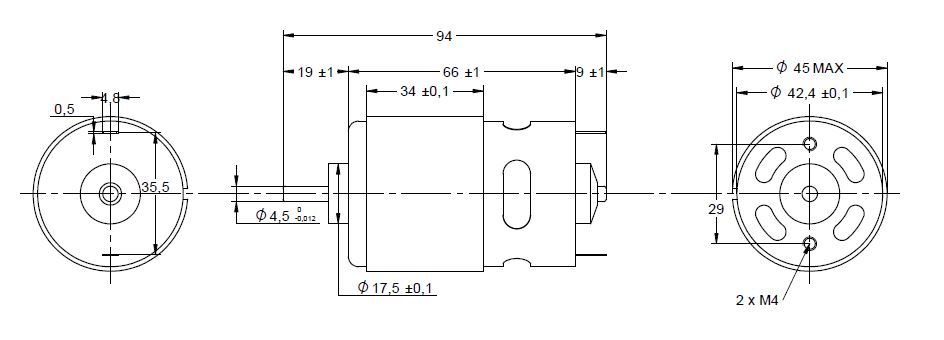

Ritning
Katalog
3D CAD (.stp)
